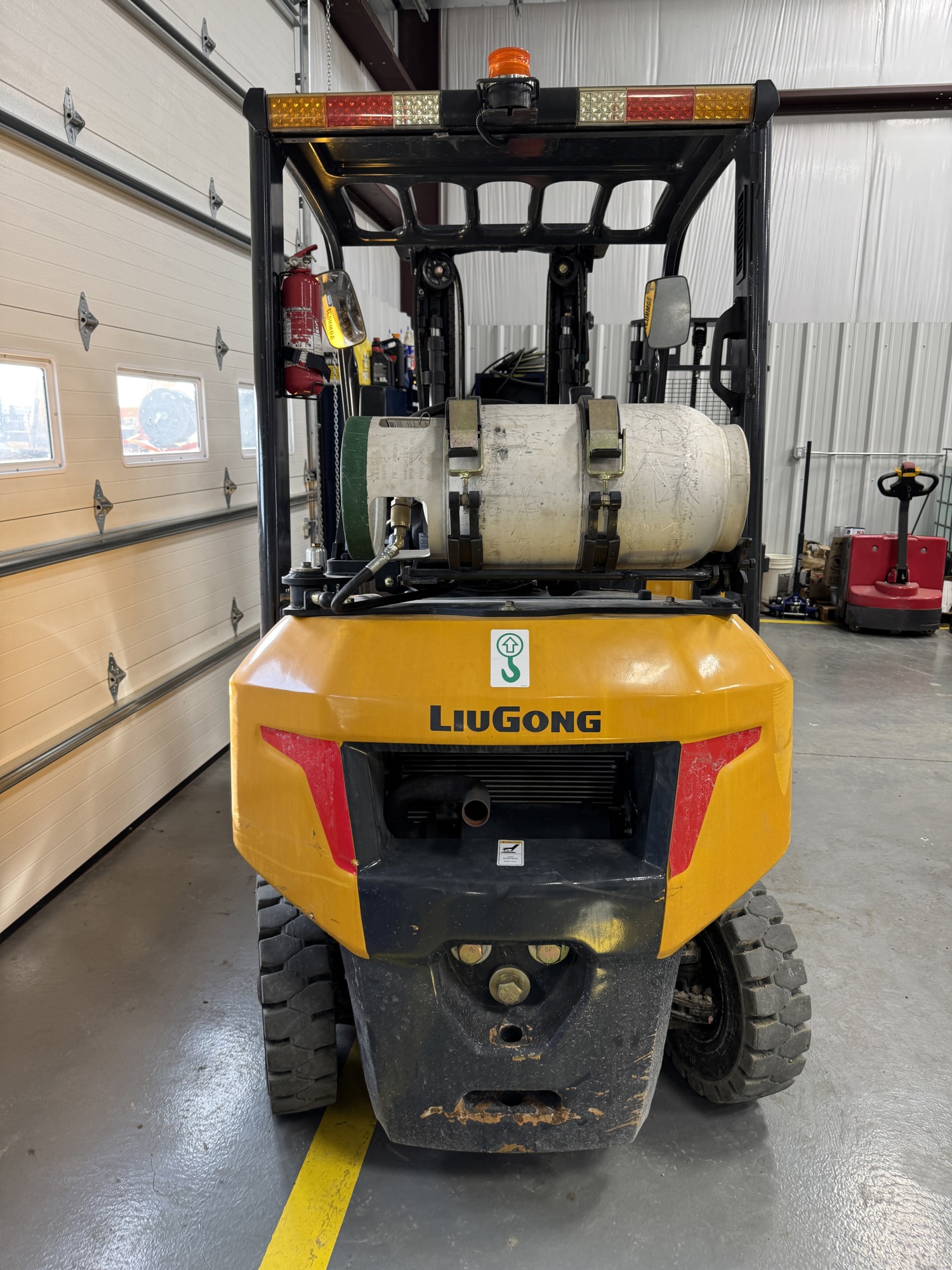

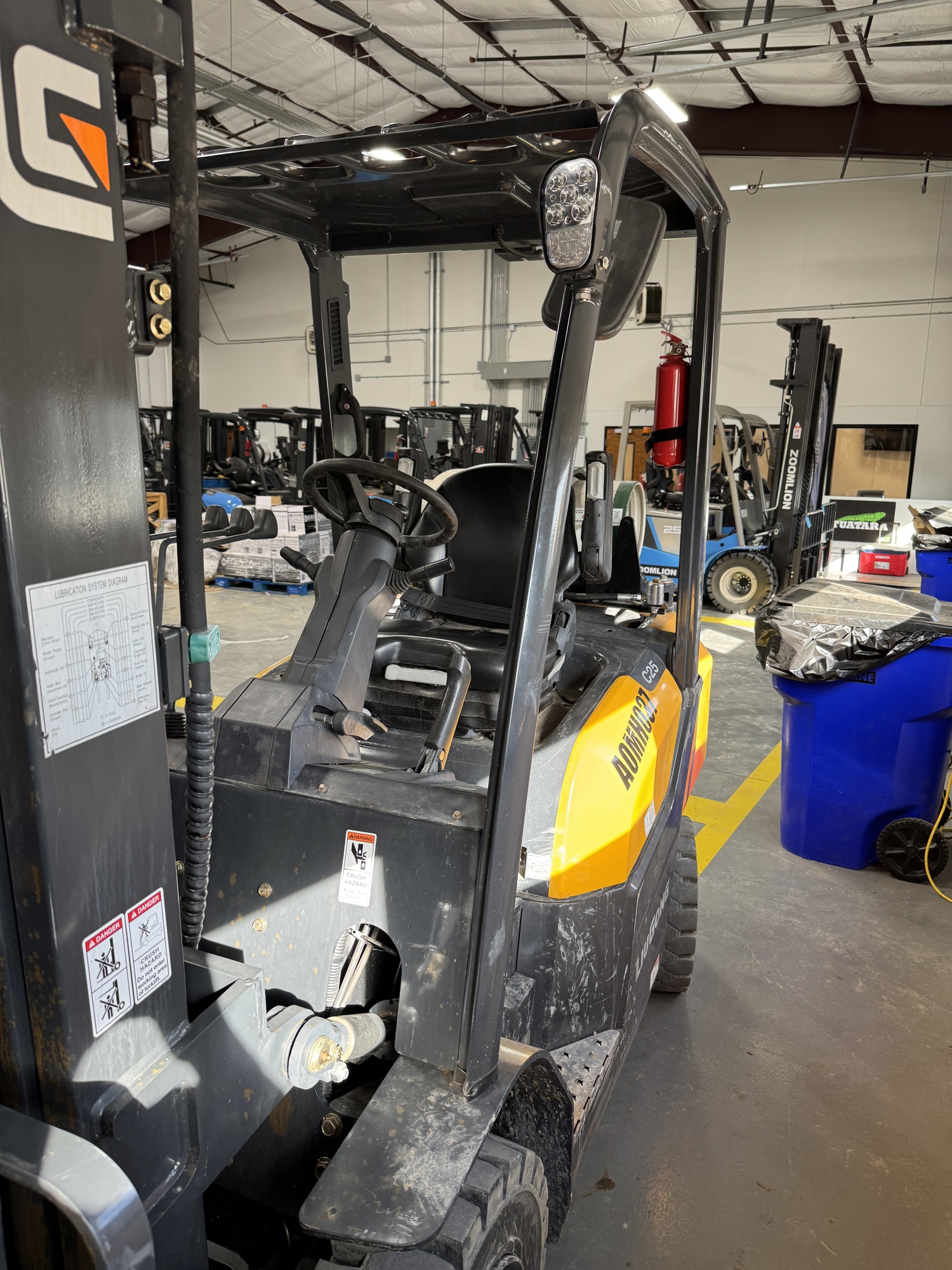

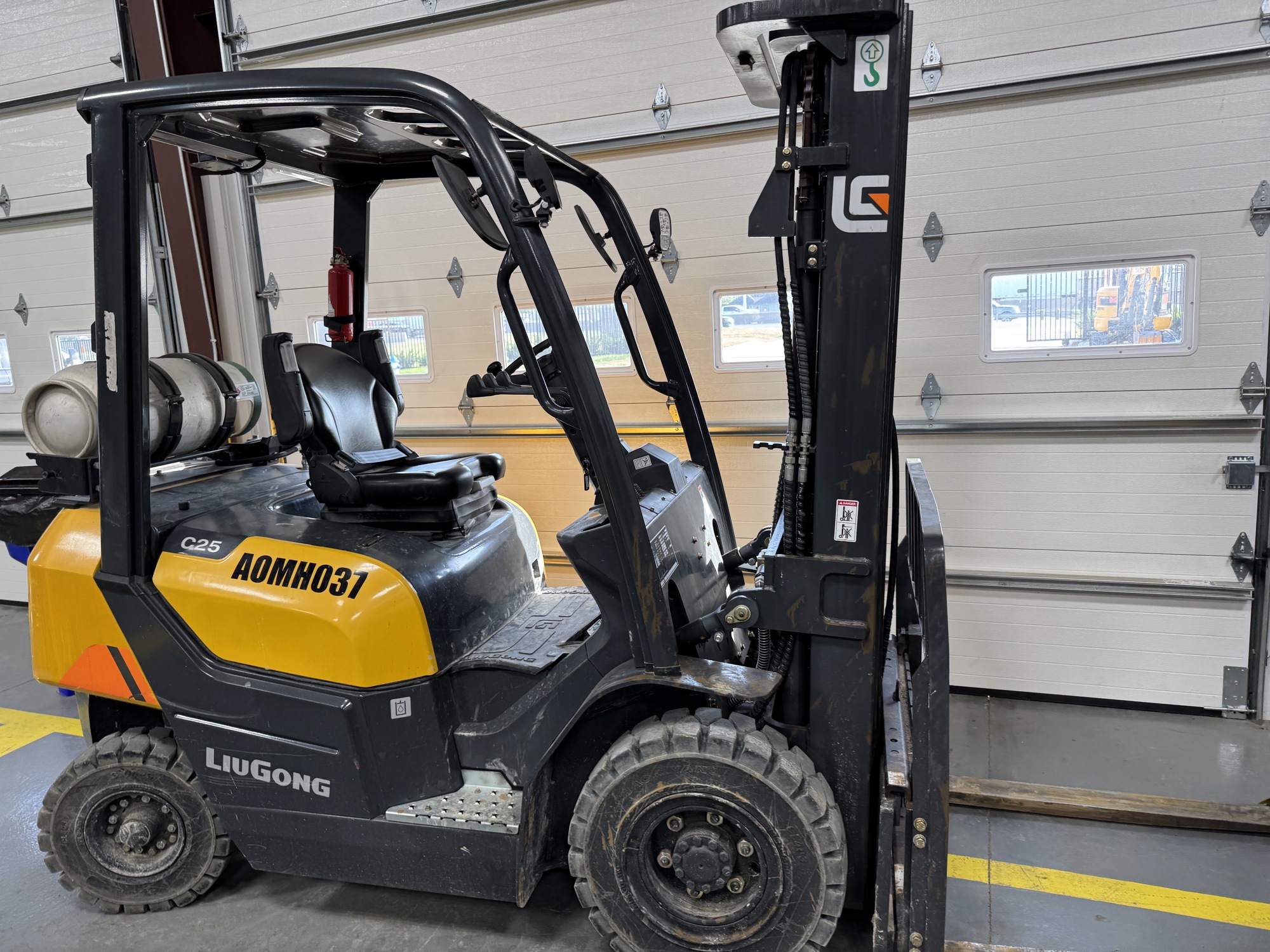

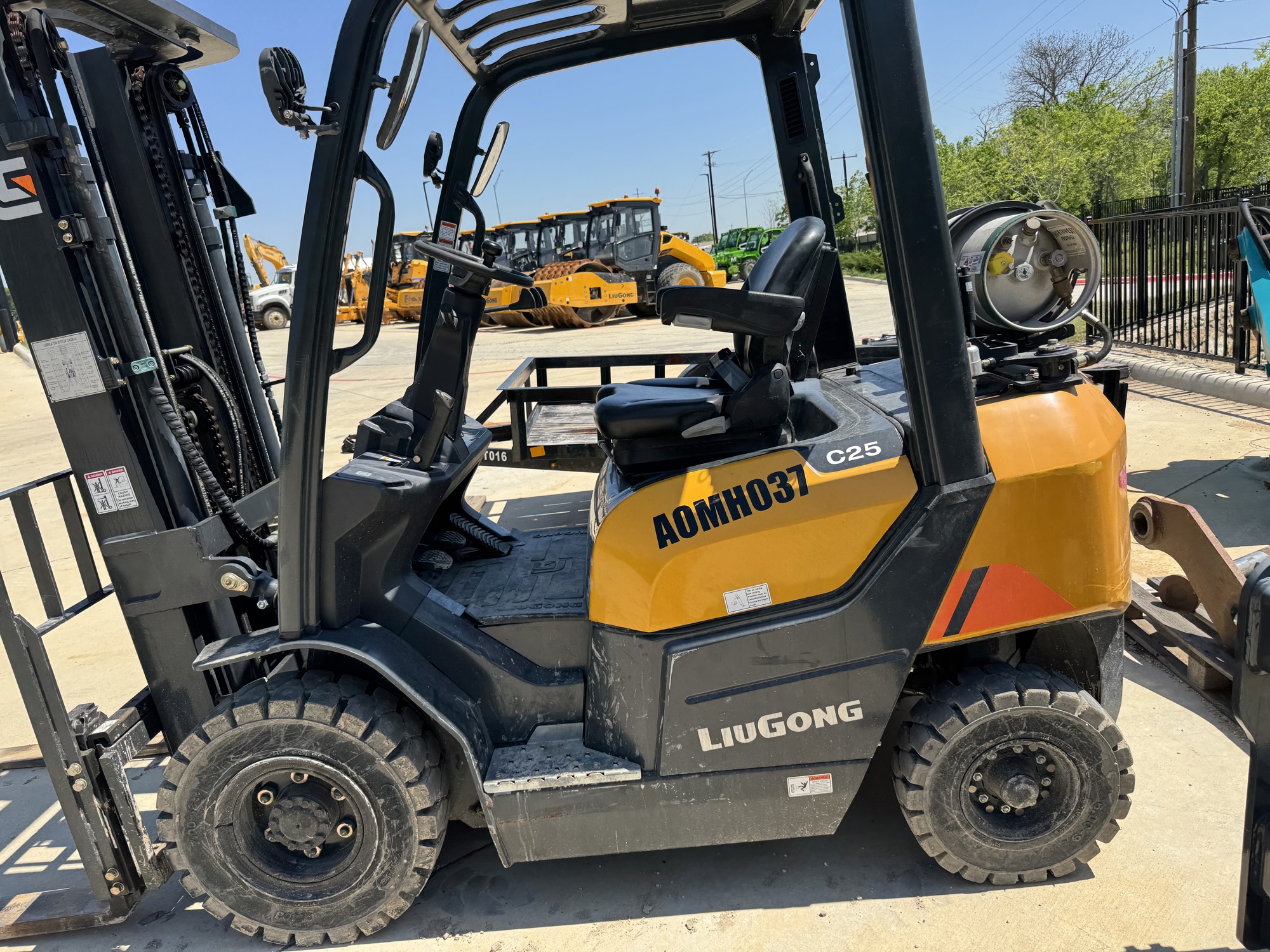

LiuGong 2025G-C Forklift - Performance and Reliability for Your Warehouse

Boost your material handling efficiency with the LiuGong 2025G-C Forklift, a robust and modern machine from the LiuGong 3-Series, designed for superior performance in indoor environments. Engineered by LiuGong North America, this forklift combines durability, operator comfort, and advanced features to meet the demands of warehouses, manufacturing facilities, and industrial applications.

Key Specifications

• Lifting Capacity: 5,000 lbs (2,265 kg) at 24" load center – Handle heavy loads with confidence.
• Maximum Fork Height: 118.1 in (3 m) with standard 2-stage mast – Reach high storage racks effortlessly.
• Freelift: 5.5 in (140 mm) with standard 2-stage mast – Versatile for low-clearance stacking.
• Operating Weight: Approximately 8,600 lbs (3,900 kg) – Stable and durable for heavy-duty tasks.
• Dimensions:
• Load Center: 24 in (500 mm)
• Upright Lowered Height: 83.9 in (2.13 m) with standard 2-stage mast
• Upright Extended Height: 161.3 in (4.1 m) with standard 2-stage mast
• Overhead Guard Height: 83.5 in (2.12 m)

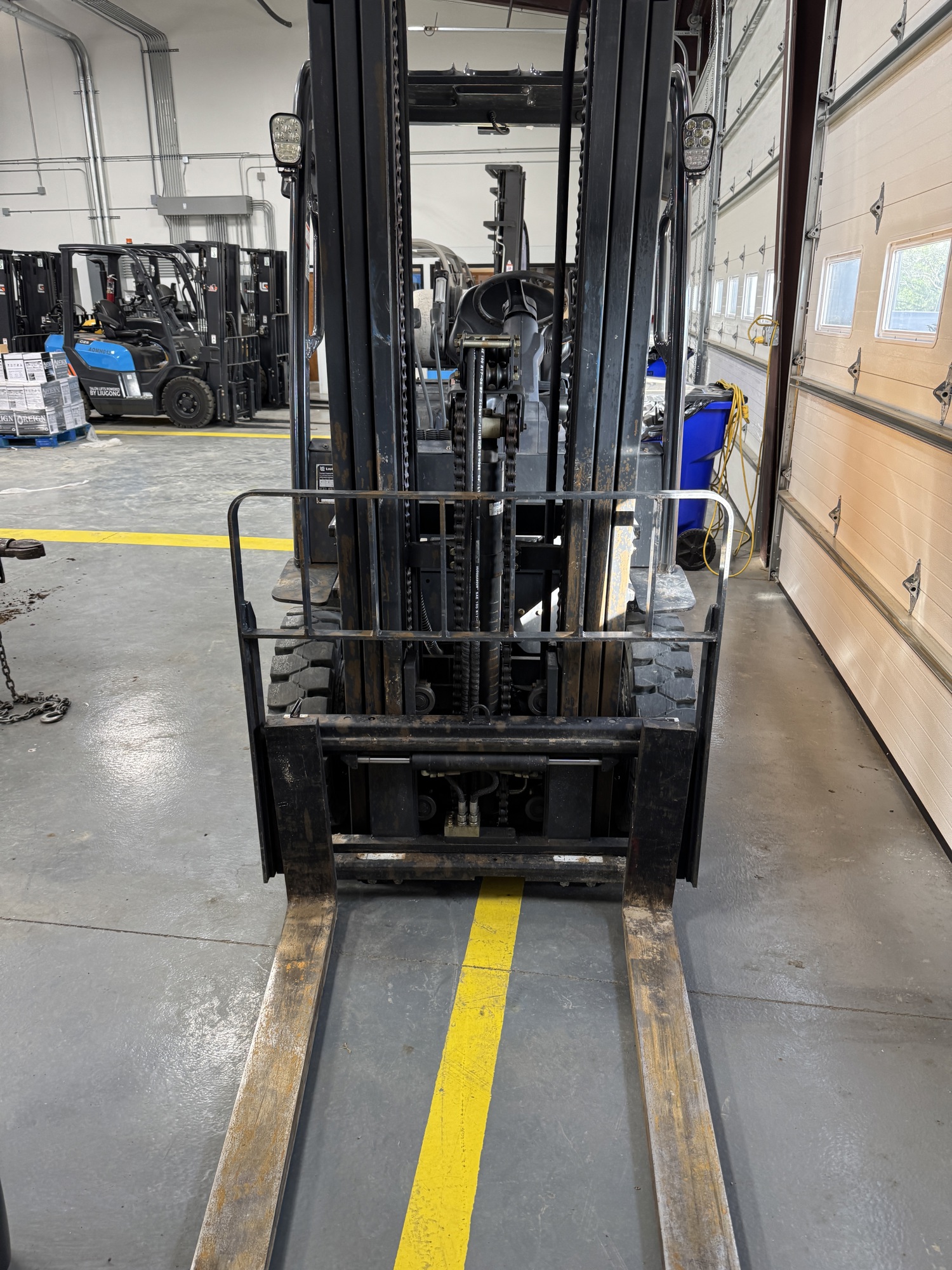

• Fork Dimensions (T x W x L): 1.6 x 3.9 x 42 in (40 x 100 x 1,070 mm)
• Fork Spread (Min/Max): 8.7 / 34.7 in (220 / 880 mm)
• Turning Radius: 143.7 in (3.65 m) – Excellent maneuverability in tight spaces.
• Operating Speed:
• Travel Speed (Loaded/Unloaded): 10.6 / 10.9 mph (17 / 17.5 km/h)
• Lift Speed (Loaded/Unloaded): 0.60 / 0.65 m/s (118 / 128 fpm)
• Lower Speed (Loaded/Unloaded): 0.50 / 0.50 m/s (98 / 98 fpm)
• Gradeability (Loaded/Unloaded): 35% / 22% – Tackle inclines with ease.

Standout Features

• Powerful Engine: Equipped with a 2.4L PSI 4G64 LPG engine (46 kW / 62 hp at 2,700 rpm, EPA 4F certified), delivering efficient and reliable performance with maximum torque of 168 N.m at 1,600 rpm.
• Fuel Type: LPG (Propane) – Ideal for indoor use with low emissions.
• Cushion Tires: Front (21×7-15) and Rear (16×5×10-1/2) for smooth operation on indoor surfaces.

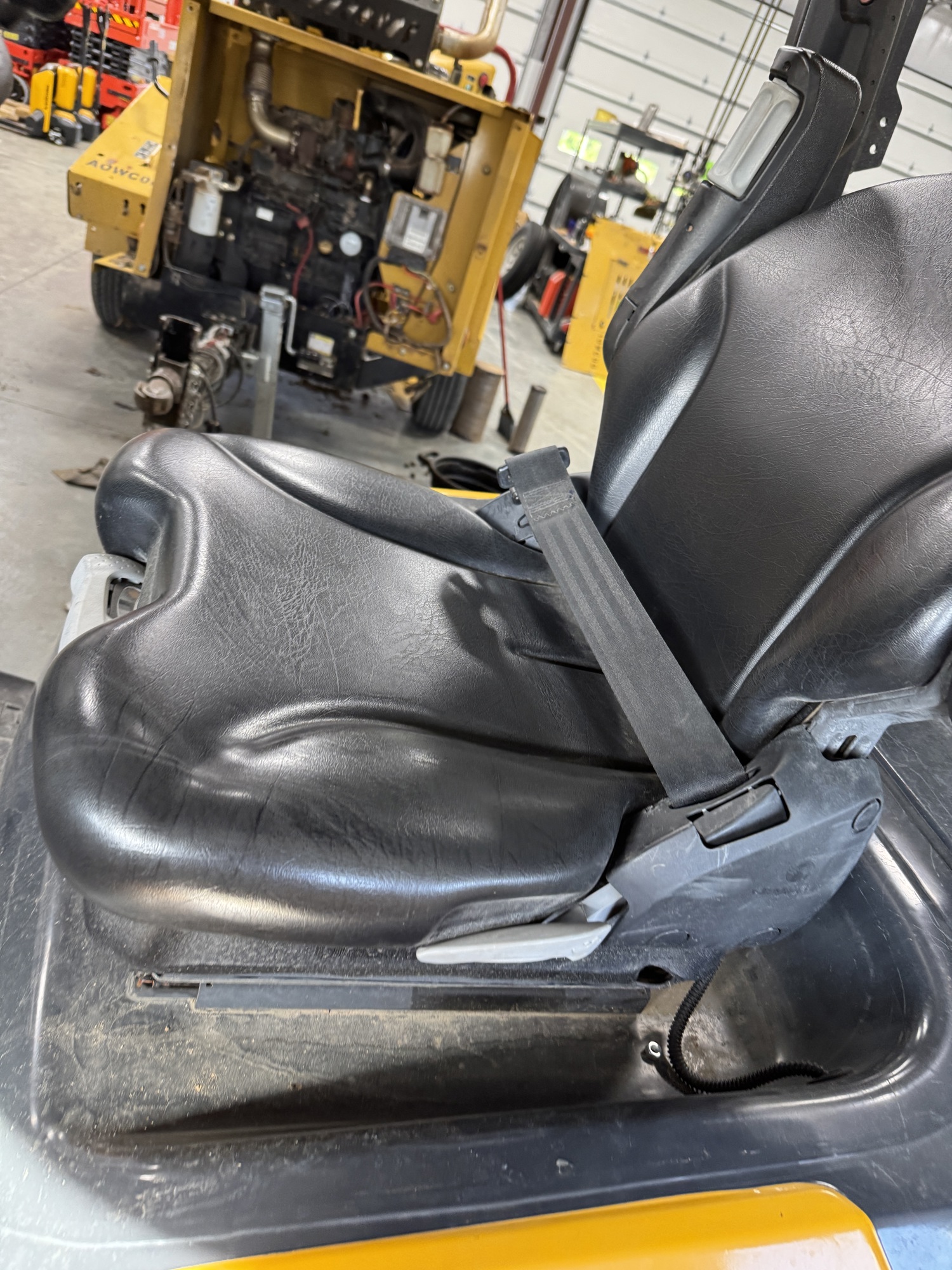

• Ergonomic Design: Features a full-suspension seat, intuitive controls, and a spacious operator workspace to maximize comfort and reduce fatigue.
• Advanced Hydraulics: High lift speeds and precise control for efficient load handling.
• Durable Construction: Built with quality components for long-lasting performance in demanding environments.
• Easy Maintenance: Designed for quick diagnostics and easy service access, supported by LiuGong’s extensive parts stock near Houston, TX, and a factory-trained dealer network.
• Mast Options: Standard two-stage, full-free two-stage, or three-stage masts available, with lift heights up to 7.0 m (23 ft).

Why Choose the LiuGong 2025G-C?

The LiuGong 2025G-C is tailored for indoor material handling, offering a perfect balance of power, maneuverability, and operator comfort. Its robust PSI engine and cushion tires ensure smooth, efficient operation on flat surfaces, making it ideal for warehouses and manufacturing plants. Backed by LiuGong’s 3-year/6,000-hour comprehensive warranty and a global network of over 300 dealers, the 2025G-C minimizes downtime and maximizes productivity. Whether stacking pallets or moving heavy loads, this forklift delivers exceptional value and performance.
